Paint的高级用法主要有：渲染着色、滤镜 和 Xfermode。

Canvas的drawXXX方法画具体的形状，Paint的Shader定义图像的着色和外观。

目前 Shader的子类有 LinearGradient(线性渲染)、SweepGradient(渐变渲染/梯度渲染)、
RadialGradient(环形渲染)、BitmapShader(位图渲染) 和 ComposeShader(组合渲染)。

TileMode （拉伸形式）

TileMode 拉伸方式，在Shader的创建中会用到。只在图片和显示区域大小不符的情况下进行扩充渲染，TileMode源码定义如下：

public enum TileMode {
   /**
    * replicate the edge color if the shader draws outside of its
    * original bounds
    */
    CLAMP   (0),
   /**
    * repeat the shader's image horizontally and vertically
    */
    REPEAT  (1),
   /**
    * repeat the shader's image horizontally and vertically, alternating
    * mirror images so that adjacent images always seam
    */
    MIRROR  (2);
}

从源码定义上可以看到TileMode是一个枚举类，定义了3种类型：CLAMP、REPEAT和 MIRROR。

CLAMP

CLAMP 拉伸最后一个像素铺满容器。

image-20210120120028712

代码如下：

// 获取Bitmap
private val bitmap = BitmapFactory.decodeResource(resources, R.drawable.avator)

private val paint = Paint().apply {
    isAntiAlias = true
    isDither = true
    // 设置路径效果，圆角
    pathEffect = CornerPathEffect(25f)
    shader = BitmapShader(bitmap, Shader.TileMode.CLAMP, Shader.TileMode.CLAMP)
}

override fun onDraw(canvas: Canvas) {
    super.onDraw(canvas)
    canvas.translate(width / 4f, height / 4f)
    canvas.drawRect(0f, 0f, bitmap.width.toFloat(), bitmap.height.toFloat(), paint)
    canvas.translate(0f, bitmap.width.toFloat())
    canvas.drawRect(-50f, 0f, bitmap.width.toFloat() + 100, bitmap.height.toFloat() + 100, paint)
}

MIRROR

横向和纵向不足处不断翻转镜像平铺。

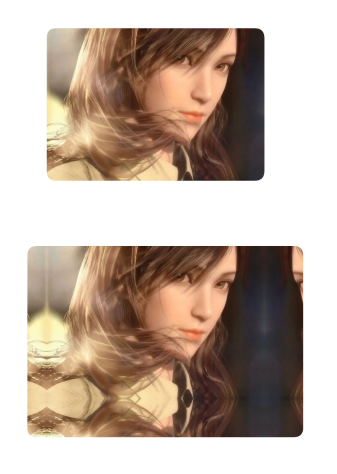

image-20210120133425081

代码同CLAMP，只需将shader改一下即可：

shader = BitmapShader(bitmap, Shader.TileMode.MIRROR, Shader.TileMode.MIRROR)

REPEAT

横向和纵向不足时重复放置，类似于电脑壁纸。

image-20210120133738294

代码同CLAMP，只需将shader改一下即可：

shader = BitmapShader(bitmap, Shader.TileMode.REPEAT, Shader.TileMode.REPEAT)

线性渲染 LinearGradient

LinearGradient用来实现线性渐变效果。

public class LinearGradient extends Shader {}

渐变效果：

image-20201210174046124
override fun onDraw(canvas: Canvas) {
    super.onDraw(canvas)
    val linearGradient = LinearGradient(0f, 0f, 500f, 300f, Color.RED, Color.BLUE, Shader.TileMode.CLAMP)
    paint.shader = linearGradient
    canvas.drawRect(0f, 0f, 800f, 800f, paint)
}

使用效果：

image-20201210162543735
// 0x22ffffff, -0x1, 0x22ffffff
class LinearGradientText @JvmOverloads constructor(
    context: Context, attrs: AttributeSet? = null, defStyleAttr: Int = 0
) : AppCompatTextView(context, attrs, defStyleAttr) {
    // 线性渐变
    private var linearGradient: LinearGradient? = null
    // 平移matrix
    private val translateMatrix: Matrix = Matrix()
    // 平移变量默认值
    private var defaultX: Float = 20f
    // 平移量间隔值
    private var translateX: Float = 0f

    override fun onSizeChanged(w: Int, h: Int, oldw: Int, oldh: Int) {
        super.onSizeChanged(w, h, oldw, oldh)
        // 获取文本值
        val text = text.toString()
        // 获取文本的测量宽度
        val measureTextWidth = paint.measureText(text)
        val gradientSize = measureTextWidth / text.length * 3
        linearGradient = LinearGradient(
            -gradientSize, 0f, 0f, 0f,
            intArrayOf(0x22ffffff, -0x1, 0x22ffffff), null, Shader.TileMode.CLAMP
        )
        paint.shader = linearGradient
    }

    override fun onDraw(canvas: Canvas) {
        super.onDraw(canvas)
        translateX += defaultX
        val measureTextWidth = paint.measureText(text.toString())
        val count = if (lineCount > 1) lineCount - 1 else 1
        if (translateX > measureTextWidth / count || translateX < 1) {
            defaultX = -defaultX
        }
        translateMatrix.setTranslate(translateX, 0f)
        linearGradient?.setLocalMatrix(translateMatrix)
        postInvalidateDelayed(50)
    }
}

位图渲染 BitmapShader

BitmapShader 位图图像渲染，用Bitmap对绘制的图形进行渲染着色，简单来说是用图片对图形进行贴图。

在TileMode中已有基本使用，具体请看 CLAMP。

以下使用代码公共部分：

class GradientView @JvmOverloads constructor(
    context: Context, attrs: AttributeSet? = null, defStyleAttr: Int = 0
) : View(context, attrs, defStyleAttr) {

    private val bitmap: Bitmap = BitmapFactory.decodeResource(resources, R.drawable.avatar)
    private var bWidth: Int = 0
    private var bHeight: Int = 0
    private val paint = Paint()
    private var bitmapShader: BitmapShader? = null
    private val shapeMatrix = Matrix()
    private val rectF = RectF()

    init {
        // 获取资源图片
        bWidth = bitmap.width
        bHeight = bitmap.height
        /**
         * TileMode.CLAMP 拉伸最后一个像素去铺满剩下的地方
         * TileMode.MIRROR 通过镜像翻转铺满剩下的地方。
         * TileMode.REPEAT 重复图片平铺整个画面（电脑设置壁纸）
         * 在图片和显示区域大小不符的情况进行扩充渲染
         */
        bitmapShader = BitmapShader(bitmap, Shader.TileMode.REPEAT, Shader.TileMode.REPEAT)
        paint.shader = bitmapShader
    }

    override fun onDraw(canvas: Canvas) {
        super.onDraw(canvas)
}
  • 圆形头像
image-20201210164831234
override fun onDraw(canvas: Canvas) {
    super.onDraw(canvas)
    // 坐标轴移动1/4的原因是，坐标轴移动1/4的位置为原点，然后将图片缩放后，图片的顶点与原点重合
    // 进行画园时刚好位于正中心，切换切割的图片也是图片的y中心部分
    canvas.translate(width / 4f, height / 4f)
    paint.shader = bitmapShader
    paint.isAntiAlias = true
    // 图片缩放
    val scale = max(bWidth, bHeight) / min(bWidth, bHeight) * 1.0f
    shapeMatrix.setScale(scale, scale)
    shader.setLocalMatrix(shapeMatrix)
    canvas.drawCircle(bHeight / 2f, bHeight / 2f, bHeight / 2f, paint)
}
  • 椭圆头像
image-20201210171000171
override fun onDraw(canvas: Canvas) {
    super.onDraw(canvas)
    // 坐标轴移动1/4的原因是，坐标轴移动1/4的位置为原点，然后将图片缩放后，图片的顶点与原点重合
    // 进行画园时刚好位于正中心，切换切割的图片也是图片的y中心部分
    canvas.translate(width / 4f, height / 4f)
    paint.shader = bitmapShader
    paint.isAntiAlias = true
    // 图片缩放
    val scale = max(bWidth, bHeight) / min(bWidth, bHeight) * 1.0f
    shapeMatrix.setScale(scale, scale)
    shader.setLocalMatrix(shapeMatrix)
    rectF.set(0f, 0f, bWidth + 100f, bHeight.toFloat())
    canvas.drawOval(rectF, paint)
}
  • 矩形头像
image-20201210171452728
override fun onDraw(canvas: Canvas) {
    super.onDraw(canvas)
       canvas.translate(width/4, height/4)
    paint.shader = bitmapShader
    // 抗锯齿
    paint.isAntiAlis = true
    val scale = max(bWidth, bHeight) / min(bWidth, bHeight)
    shapeMatrix.setScale(scale,scale)
    paint.shader.setLocalMatrix(shapeMatrix)
    rectF.set(0f, 0f, bWidth.toFloat(), bHeight.toFloat())
    canvas.drawRect(rectF,paint)
}
  • ShapeDrawable实现头像
image-20201210164831234
override fun onDraw(canvas: Canvas) {
    super.onDraw(canvas)
    canvas.translate(width / 4f, height / 4f)
    paint.shader = bitmapShader
    paint.isAntiAlias = true
    // 图片缩放
    val scale = max(bWidth, bHeight) / min(bWidth, bHeight)
    shapeMatrix.setScale(scale, scale)
    paint.shader.setLocalMatrix(shapeMatrix)
    rectF.set(0f, 0f, bWidth.toFloat(), bHeight.toFloat())
    val shapeDrawable = ShapeDrawable(OvalShape())
    shapeDrawable.paint.shader = bitmapShader
    // 一定要设置bounds,不然可能不显示
    shapeDrawable.bounds = rectF.toRect()
    shapeDrawable.draw(canvas)
}

环形渲染 RadialGradient

image-20201210180214610
override fun onDraw(canvas: Canvas) {
    super.onDraw(canvas)
    val radialGradient = RadialGradient(
        400f, 400f, 300f,
        intArrayOf(
            Color.RED,
            Color.GREEN,
            Color.BLUE,
            Color.YELLOW
        ), null, Shader.TileMode.REPEAT
    )
    paint.shader = radialGradient
    canvas.drawCircle(400f,400f,400f, paint)
}

渐变渲染 SweepGradient

image-20201211093531255
override fun onDraw(canvas: Canvas) {
    super.onDraw(canvas)
    val sweepGradient = SweepGradient(
        300f,300f,
        intArrayOf(
            Color.RED,
            Color.GREEN,
            Color.BLUE,
            Color.YELLOW
    ), null)
    paint.shader = sweepGradient
    canvas.drawCircle(300f,300f,300f,paint)
}

组合着色 ComposeShader

image-20201211093902530
override fun onDraw(canvas: Canvas) {
    super.onDraw(canvas)
    val linearGradient = LinearGradient(0f, 0f, 300f, 300f, Color.RED, Color.WHITE,Shader.TileMode.CLAMP)
    val sweepGradient = SweepGradient(
        200f, 200f, intArrayOf(
            Color.RED,
            Color.GREEN,
            Color.BLUE,
            Color.YELLOW
        ), null
    )
    val composeShader = ComposeShader(linearGradient,sweepGradient,PorterDuff.Mode.MULTIPLY)
    paint.shader = composeShader
    canvas.drawRect(100f,100f,500f,500f,paint)
}
image-20201211094327261
override fun onDraw(canvas: Canvas) {
    super.onDraw(canvas)
    val bitmap = BitmapFactory.decodeResource(resources, R.drawable.heart)
    canvas.translate(measuredWidth/4f, measuredHeight/4f)
    val heartBitmapShader = BitmapShader(bitmap, Shader.TileMode.CLAMP, Shader.TileMode.CLAMP)

    val linearGradient = LinearGradient(
        0f,
        0f,
        bitmap.width.toFloat(),
        bitmap.height.toFloat(),
        Color.RED,
        Color.GREEN,
        Shader.TileMode.CLAMP
    )
    val composeShader =
    ComposeShader(heartBitmapShader, linearGradient, PorterDuff.Mode.MULTIPLY)
    paint.isAntiAlias = true
    paint.shader = composeShader
    canvas.drawRect(0f, 0f, bitmap.width.toFloat(), bitmap.height.toFloat(), paint)
}

备注：
在进行各种渲染操作时，或多或少会用到矩阵Matrix的相关操作，那么pre、post 和set的区别如下：

pre是在队列最前面插入，post是在队列最后面追加，而set先清空队列在添加。
