UI绘制流程
自定义
View最重要的部分是外观。绘制自定义视图可能很简单，也可能很复杂，具体取决于应用的需求。
在自定义view中，onDraw()扮演着非常重要的角色。通过对它的仔细探究就可以知道view是怎么画出来的。
绘制流程
在之前了解绘制流程中可以知道ViewRootImpl#performTraversals()方法中调用了performMeasure()、performLayout()和performDraw()。
ViewRootImpl#performTraversals()
private void performTraversals() {
// ...
boolean cancelDraw = mAttachInfo.mTreeObserver.dispatchOnPreDraw() || !isViewVisible;
if (!cancelDraw) {
// ...
performDraw();
} else {
if (isViewVisible) {
// Try again
scheduleTraversals();
} else if (mPendingTransitions != null && mPendingTransitions.size() > 0) {
for (int i = 0; i < mPendingTransitions.size(); ++i) {
mPendingTransitions.get(i).endChangingAnimations();
}
mPendingTransitions.clear();
}
}
// ...
}
performDraw()
private void performDraw() {
// ...
final boolean fullRedrawNeeded = mFullRedrawNeeded || mReportNextDraw;
// ...
try {
// ...
boolean canUseAsync = draw(fullRedrawNeeded);
// ...
} finally {
mIsDrawing = false;
Trace.traceEnd(Trace.TRACE_TAG_VIEW);
}
}
在performDraw()中调用了draw()，参数fullRedrawNeeded的作用是判断是否需要重新绘制全部视图，如果是第一次绘制视图，需要全部绘制，如果由于某些原因，导致视图重绘则不需要绘制所有视图。
draw()
private boolean draw(boolean fullRedrawNeeded) {
// ...
// mDirty 表示需要绘制视图的区域
final Rect dirty = mDirty;
if (mSurfaceHolder != null) {
// The app owns the surface, we won't draw.
dirty.setEmpty();
if (animating && mScroller != null) {
mScroller.abortAnimation();
}
return false;
}
// 如果需要全部重新绘制，则绘制区域为整个屏幕
// 第一次绘制流程需要绘制整个屏幕
if (fullRedrawNeeded) {
dirty.set(0, 0, (int) (mWidth * appScale + 0.5f), (int) (mHeight * appScale + 0.5f));
}
// ...
boolean useAsyncReport = false;
if (!dirty.isEmpty() || mIsAnimating || accessibilityFocusDirty) {
if (mAttachInfo.mThreadedRenderer != null && mAttachInfo.mThreadedRenderer.isEnabled()) {
// If accessibility focus moved, always invalidate the root.
boolean invalidateRoot = accessibilityFocusDirty || mInvalidateRootRequested;
mInvalidateRootRequested = false;
// Draw with hardware renderer.
mIsAnimating = false;
if (mHardwareYOffset != yOffset || mHardwareXOffset != xOffset) {
mHardwareYOffset = yOffset;
mHardwareXOffset = xOffset;
invalidateRoot = true;
}
if (invalidateRoot) {
mAttachInfo.mThreadedRenderer.invalidateRoot();
}
dirty.setEmpty();
// Stage the content drawn size now. It will be transferred to the renderer
// shortly before the draw commands get send to the renderer.
final boolean updated = updateContentDrawBounds();
if (mReportNextDraw) {
// report next draw overrides setStopped()
// This value is re-sync'd to the value of mStopped
// in the handling of mReportNextDraw post-draw.
mAttachInfo.mThreadedRenderer.setStopped(false);
}
if (updated) {
requestDrawWindow();
}
useAsyncReport = true;
mAttachInfo.mThreadedRenderer.draw(mView, mAttachInfo, this);
} else {
// ...
if (!drawSoftware(surface, mAttachInfo, xOffset, yOffset,
scalingRequired, dirty, surfaceInsets)) {
return false;
}
}
}
if (animating) {
mFullRedrawNeeded = true;
scheduleTraversals();
}
return useAsyncReport;
}
在draw()中首先获取了mDirty值，接着根据fullRedrawNeeded的值判断是否需要重置绘制区域，最后调用了drawSoftware()。
drawSoftware()
private boolean drawSoftware(Surface surface, AttachInfo attachInfo, int xoff, int yoff,
boolean scalingRequired, Rect dirty, Rect surfaceInsets) {
// Draw with software renderer.
final Canvas canvas;
// ...
try {
// ...
// 锁定canvas区域，区域范围由dirty决定
canvas = mSurface.lockCanvas(dirty);
// TODO: Do this in native
// canvas设置像素密度
canvas.setDensity(mDensity);
}
// ...
try {
//...
// 清除位图格式的alpha通道，以便子控件重新组合其图纸上的透明背景
// 避免在未出现偏移的情况下空白区域出现垃圾
if (!canvas.isOpaque() || yoff != 0 || xoff != 0) {
canvas.drawColor(0, PorterDuff.Mode.CLEAR);
}
// ...
// view调用draw方法
mView.draw(canvas);
drawAccessibilityFocusedDrawableIfNeeded(canvas);
} finally {
// ...
}
return true;
}
上述关键代码可以看出，首先获取Canvas对象，然后锁定该canvas的区域，该区域由dirty决定，接着对canvas进行赋值，最后调用了mView.draw(canvas)方法。
View#draw()
@CallSuper
public void draw(Canvas canvas) {
final int privateFlags = mPrivateFlags;
mPrivateFlags = (privateFlags & ~PFLAG_DIRTY_MASK) | PFLAG_DRAWN;
/*
* Draw traversal performs several drawing steps which must be executed
* (绘制遍历执行必须执行的几个绘图步骤)
* in the appropriate order:
*
* 1. Draw the background (绘制背景)
* 2. If necessary, save the canvas' layers to prepare for fading (如有必要，保存画布已准备渐变)
* 3. Draw view's content (画视图内容)
* 4. Draw children （画子控件）
* 5. If necessary, draw the fading edges and restore layers （如有必要，绘制渐变边缘并恢复图层）
* 6. Draw decorations (scrollbars for instance) （绘制装饰（例如滚动条））
* 7. If necessary, draw the default focus highlight （如有必要，绘制焦点）
*/
// Step 1, draw the background, if needed
int saveCount;
drawBackground(canvas);
// skip step 2 & 5 if possible (common case)
final int viewFlags = mViewFlags;
boolean horizontalEdges = (viewFlags & FADING_EDGE_HORIZONTAL) != 0;
boolean verticalEdges = (viewFlags & FADING_EDGE_VERTICAL) != 0;
if (!verticalEdges && !horizontalEdges) {
// Step 3, draw the content
onDraw(canvas);
// Step 4, draw the children
dispatchDraw(canvas);
drawAutofilledHighlight(canvas);
// Overlay is part of the content and draws beneath Foreground
if (mOverlay != null && !mOverlay.isEmpty()) {
mOverlay.getOverlayView().dispatchDraw(canvas);
}
// Step 6, draw decorations (foreground, scrollbars)
onDrawForeground(canvas);
// Step 7, draw the default focus highlight
drawDefaultFocusHighlight(canvas);
if (isShowingLayoutBounds()) {
debugDrawFocus(canvas);
}
// we're done...
return;
}
/*
* Here we do the full fledged routine...
* (this is an uncommon case where speed matters less,
* this is why we repeat some of the tests that have been
* done above)
*/
boolean drawTop = false;
boolean drawBottom = false;
boolean drawLeft = false;
boolean drawRight = false;
float topFadeStrength = 0.0f;
float bottomFadeStrength = 0.0f;
float leftFadeStrength = 0.0f;
float rightFadeStrength = 0.0f;
// Step 2, save the canvas' layers
int paddingLeft = mPaddingLeft;
final boolean offsetRequired = isPaddingOffsetRequired();
if (offsetRequired) {
paddingLeft += getLeftPaddingOffset();
}
int left = mScrollX + paddingLeft;
int right = left + mRight - mLeft - mPaddingRight - paddingLeft;
int top = mScrollY + getFadeTop(offsetRequired);
int bottom = top + getFadeHeight(offsetRequired);
if (offsetRequired) {
right += getRightPaddingOffset();
bottom += getBottomPaddingOffset();
}
final ScrollabilityCache scrollabilityCache = mScrollCache;
final float fadeHeight = scrollabilityCache.fadingEdgeLength;
int length = (int) fadeHeight;
// clip the fade length if top and bottom fades overlap
// overlapping fades produce odd-looking artifacts
if (verticalEdges && (top + length > bottom - length)) {
length = (bottom - top) / 2;
}
// also clip horizontal fades if necessary
if (horizontalEdges && (left + length > right - length)) {
length = (right - left) / 2;
}
if (verticalEdges) {
topFadeStrength = Math.max(0.0f, Math.min(1.0f, getTopFadingEdgeStrength()));
drawTop = topFadeStrength * fadeHeight > 1.0f;
bottomFadeStrength = Math.max(0.0f, Math.min(1.0f, getBottomFadingEdgeStrength()));
drawBottom = bottomFadeStrength * fadeHeight > 1.0f;
}
if (horizontalEdges) {
leftFadeStrength = Math.max(0.0f, Math.min(1.0f, getLeftFadingEdgeStrength()));
drawLeft = leftFadeStrength * fadeHeight > 1.0f;
rightFadeStrength = Math.max(0.0f, Math.min(1.0f, getRightFadingEdgeStrength()));
drawRight = rightFadeStrength * fadeHeight > 1.0f;
}
saveCount = canvas.getSaveCount();
int topSaveCount = -1;
int bottomSaveCount = -1;
int leftSaveCount = -1;
int rightSaveCount = -1;
int solidColor = getSolidColor();
if (solidColor == 0) {
if (drawTop) {
topSaveCount = canvas.saveUnclippedLayer(left, top, right, top + length);
}
if (drawBottom) {
bottomSaveCount = canvas.saveUnclippedLayer(left, bottom - length, right, bottom);
}
if (drawLeft) {
leftSaveCount = canvas.saveUnclippedLayer(left, top, left + length, bottom);
}
if (drawRight) {
rightSaveCount = canvas.saveUnclippedLayer(right - length, top, right, bottom);
}
} else {
scrollabilityCache.setFadeColor(solidColor);
}
// Step 3, draw the content
onDraw(canvas);
// Step 4, draw the children
dispatchDraw(canvas);
// Step 5, draw the fade effect and restore layers
final Paint p = scrollabilityCache.paint;
final Matrix matrix = scrollabilityCache.matrix;
final Shader fade = scrollabilityCache.shader;
// must be restored in the reverse order that they were saved
if (drawRight) {
matrix.setScale(1, fadeHeight * rightFadeStrength);
matrix.postRotate(90);
matrix.postTranslate(right, top);
fade.setLocalMatrix(matrix);
p.setShader(fade);
if (solidColor == 0) {
canvas.restoreUnclippedLayer(rightSaveCount, p);
} else {
canvas.drawRect(right - length, top, right, bottom, p);
}
}
if (drawLeft) {
matrix.setScale(1, fadeHeight * leftFadeStrength);
matrix.postRotate(-90);
matrix.postTranslate(left, top);
fade.setLocalMatrix(matrix);
p.setShader(fade);
if (solidColor == 0) {
canvas.restoreUnclippedLayer(leftSaveCount, p);
} else {
canvas.drawRect(left, top, left + length, bottom, p);
}
}
if (drawBottom) {
matrix.setScale(1, fadeHeight * bottomFadeStrength);
matrix.postRotate(180);
matrix.postTranslate(left, bottom);
fade.setLocalMatrix(matrix);
p.setShader(fade);
if (solidColor == 0) {
canvas.restoreUnclippedLayer(bottomSaveCount, p);
} else {
canvas.drawRect(left, bottom - length, right, bottom, p);
}
}
if (drawTop) {
matrix.setScale(1, fadeHeight * topFadeStrength);
matrix.postTranslate(left, top);
fade.setLocalMatrix(matrix);
p.setShader(fade);
if (solidColor == 0) {
canvas.restoreUnclippedLayer(topSaveCount, p);
} else {
canvas.drawRect(left, top, right, top + length, p);
}
}
canvas.restoreToCount(saveCount);
drawAutofilledHighlight(canvas);
// Overlay is part of the content and draws beneath Foreground
if (mOverlay != null && !mOverlay.isEmpty()) {
mOverlay.getOverlayView().dispatchDraw(canvas);
}
// Step 6, draw decorations (foreground, scrollbars)
onDrawForeground(canvas);
// Step 7, draw the default focus highlight
drawDefaultFocusHighlight(canvas);
if (isShowingLayoutBounds()) {
debugDrawFocus(canvas);
}
}
可以看到，draw过程比较复杂，但是逻辑十分清晰，而官方注释也清楚地说明了每一步的做法。

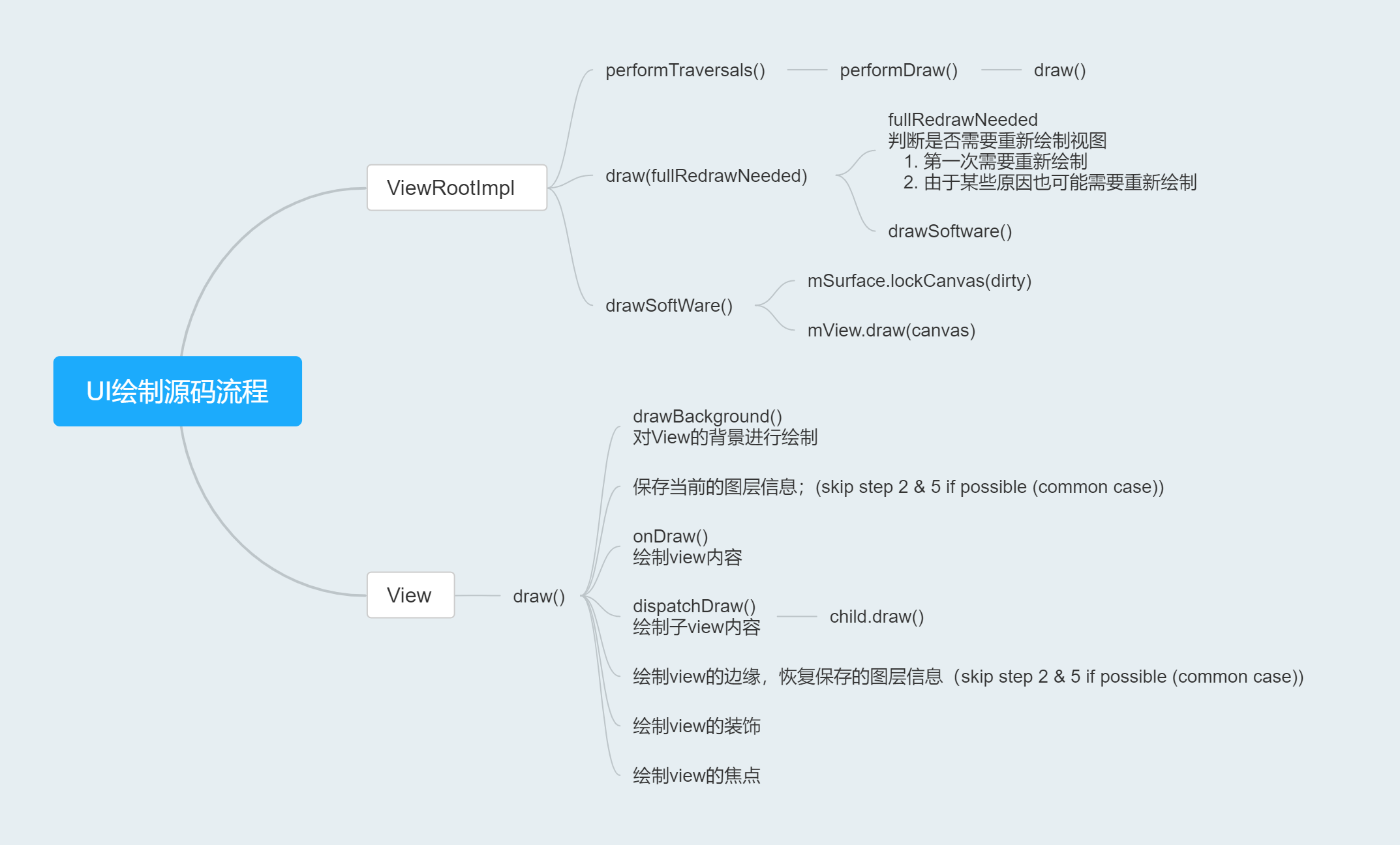

绘制流程的七个步骤：
- 对View的背景进行绘制；
- 保存当前的图层信息；(
skip step 2 & 5 if possible (common case)) - 绘制View的内容；
- 对View的子View进行绘制(如果有子View)；
- 绘制View的褪色的边缘，类似于阴影效果并恢复图层信息；(
skip step 2 & 5 if possible (common case)) - 绘制View的装饰；
- 绘制焦点部分。
drawBackground()
画背景
private void drawBackground(Canvas canvas) {
// 如果视图没有背景色，则不用绘制
final Drawable background = mBackground;
if (background == null) {
return;
}
// 根据布局的四个参数来确定背景的边界
setBackgroundBounds();
// ...
// 获取当前view的scroll值
final int scrollX = mScrollX;
final int scrollY = mScrollY;
if ((scrollX | scrollY) == 0) {
background.draw(canvas);
} else {
// 如果有值则偏移后 绘制
canvas.translate(scrollX, scrollY);
background.draw(canvas);
canvas.translate(-scrollX, -scrollY);
}
}
void setBackgroundBounds() {
if (mBackgroundSizeChanged && mBackground != null) {
// 设置背景四个参数
mBackground.setBounds(0, 0, mRight - mLeft, mBottom - mTop);
mBackgroundSizeChanged = false;
rebuildOutline();
}
}
保存图层和恢复图层暂不考虑。
//skip step 2 & 5 if possible (common case)
onDraw()
protected void onDraw(Canvas canvas) {
}
View中该方法是一个空实现，这里同理于之前的onMeasure和onLayout因为不同的View有着不同的内容，这需要我们自己去实现，即在自定义View中重写该方法来实现。
dispatchDraw()
dispatchDraw()在view中是空实现，我们可以看看ViewGroup中的。
@Override
protected void dispatchDraw(Canvas canvas) {
boolean usingRenderNodeProperties = canvas.isRecordingFor(mRenderNode);
final int childrenCount = mChildrenCount;
final View[] children = mChildren;
int flags = mGroupFlags;
if ((flags & FLAG_RUN_ANIMATION) != 0 && canAnimate()) {
final boolean buildCache = !isHardwareAccelerated();
for (int i = 0; i < childrenCount; i++) {
final View child = children[i];
if ((child.mViewFlags & VISIBILITY_MASK) == VISIBLE) {
final LayoutParams params = child.getLayoutParams();
attachLayoutAnimationParameters(child, params, i, childrenCount);
bindLayoutAnimation(child);
}
}
final LayoutAnimationController controller = mLayoutAnimationController;
if (controller.willOverlap()) {
mGroupFlags |= FLAG_OPTIMIZE_INVALIDATE;
}
controller.start();
mGroupFlags &= ~FLAG_RUN_ANIMATION;
mGroupFlags &= ~FLAG_ANIMATION_DONE;
if (mAnimationListener != null) {
mAnimationListener.onAnimationStart(controller.getAnimation());
}
}
int clipSaveCount = 0;
final boolean clipToPadding = (flags & CLIP_TO_PADDING_MASK) == CLIP_TO_PADDING_MASK;
if (clipToPadding) {
clipSaveCount = canvas.save(Canvas.CLIP_SAVE_FLAG);
canvas.clipRect(mScrollX + mPaddingLeft, mScrollY + mPaddingTop,
mScrollX + mRight - mLeft - mPaddingRight,
mScrollY + mBottom - mTop - mPaddingBottom);
}
// We will draw our child's animation, let's reset the flag
mPrivateFlags &= ~PFLAG_DRAW_ANIMATION;
mGroupFlags &= ~FLAG_INVALIDATE_REQUIRED;
boolean more = false;
final long drawingTime = getDrawingTime();
if (usingRenderNodeProperties) canvas.insertReorderBarrier();
final int transientCount = mTransientIndices == null ? 0 : mTransientIndices.size();
int transientIndex = transientCount != 0 ? 0 : -1;
// Only use the preordered list if not HW accelerated, since the HW pipeline will do the
// draw reordering internally
final ArrayList<View> preorderedList = usingRenderNodeProperties
? null : buildOrderedChildList();
final boolean customOrder = preorderedList == null
&& isChildrenDrawingOrderEnabled();
for (int i = 0; i < childrenCount; i++) {
while (transientIndex >= 0 && mTransientIndices.get(transientIndex) == i) {
final View transientChild = mTransientViews.get(transientIndex);
if ((transientChild.mViewFlags & VISIBILITY_MASK) == VISIBLE ||
transientChild.getAnimation() != null) {
more |= drawChild(canvas, transientChild, drawingTime);
}
transientIndex++;
if (transientIndex >= transientCount) {
transientIndex = -1;
}
}
final int childIndex = getAndVerifyPreorderedIndex(childrenCount, i, customOrder);
final View child = getAndVerifyPreorderedView(preorderedList, children, childIndex);
if ((child.mViewFlags & VISIBILITY_MASK) == VISIBLE || child.getAnimation() != null) {
more |= drawChild(canvas, child, drawingTime);
}
}
while (transientIndex >= 0) {
// there may be additional transient views after the normal views
final View transientChild = mTransientViews.get(transientIndex);
if ((transientChild.mViewFlags & VISIBILITY_MASK) == VISIBLE ||
transientChild.getAnimation() != null) {
more |= drawChild(canvas, transientChild, drawingTime);
}
transientIndex++;
if (transientIndex >= transientCount) {
break;
}
}
if (preorderedList != null) preorderedList.clear();
// Draw any disappearing views that have animations
if (mDisappearingChildren != null) {
final ArrayList<View> disappearingChildren = mDisappearingChildren;
final int disappearingCount = disappearingChildren.size() - 1;
// Go backwards -- we may delete as animations finish
for (int i = disappearingCount; i >= 0; i--) {
final View child = disappearingChildren.get(i);
more |= drawChild(canvas, child, drawingTime);
}
}
if (usingRenderNodeProperties) canvas.insertInorderBarrier();
if (isShowingLayoutBounds()) {
onDebugDraw(canvas);
}
if (clipToPadding) {
canvas.restoreToCount(clipSaveCount);
}
// mGroupFlags might have been updated by drawChild()
flags = mGroupFlags;
if ((flags & FLAG_INVALIDATE_REQUIRED) == FLAG_INVALIDATE_REQUIRED) {
invalidate(true);
}
if ((flags & FLAG_ANIMATION_DONE) == 0 && (flags & FLAG_NOTIFY_ANIMATION_LISTENER) == 0 &&
mLayoutAnimationController.isDone() && !more) {
// We want to erase the drawing cache and notify the listener after the
// next frame is drawn because one extra invalidate() is caused by
// drawChild() after the animation is over
mGroupFlags |= FLAG_NOTIFY_ANIMATION_LISTENER;
final Runnable end = new Runnable() {
@Override
public void run() {
notifyAnimationListener();
}
};
post(end);
}
}
dispatchDraw()里面主要遍历了所以子View，每个子View都调用了drawChild()。
drawChild()
protected boolean drawChild(Canvas canvas, View child, long drawingTime) {
return child.draw(canvas, this, drawingTime);
}
drawChild中，子view各自调用了draw方法。
其实dispatchDraw同理于我门之前的测量和布局，父亲取得所有子控件开始遍历，调用子控件让子控件自己调用自己的draw开始绘制自己。
本文作者：Xiaowu
本文链接：https://jxiaow.gitee.io/posts/94ccb851/
版权声明：本博客所有文章除特别声明外，均采用 BY-NC-SA 许可协议。转载请注明出处！
本文链接：https://jxiaow.gitee.io/posts/94ccb851/
版权声明：本博客所有文章除特别声明外，均采用 BY-NC-SA 许可协议。转载请注明出处！
